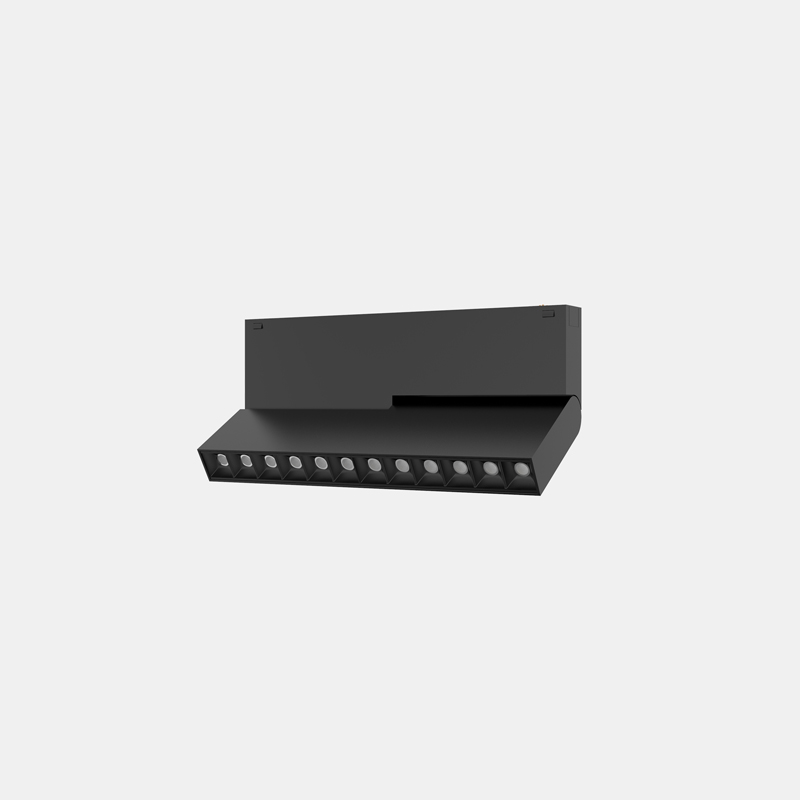

Klark Fold Dot
Magnetic LED Track Light System
Light Source
Osram
Color Temperature
2700K
3000K
4000K
CRI
90
80
Power
8W
15W
Input Voltage
DC 48V
Dimming Option
DALI Dimmable
Non-Dimmable
Beam angle
30°
45°
Tilt
90°
Degree of Protection
IP20
TECHNICAL SPECIFICATIONS
| Article No. | Finish | LED | P(W) | Voltage(V) | Angle(°) | CCT(K) | CRI | Flux(lm) |
|---|---|---|---|---|---|---|---|---|
| K-FD-48-08-30-30-90-MB-DA | Black | Osram | 8 | 48 | 30 | 3000 | 90 | 560 |
| K-FD-48-08-30-30-90-MW-DA | White | Osram | 8 | 48 | 30 | 3000 | 90 | 560 |
| K-FD-48-15-30-30-90-MB-DA | Black | Osram | 15 | 48 | 30 | 3000 | 90 | 1180 |
| K-FD-48-15-30-30-90-MW-DA | White | Osram | 15 | 48 | 30 | 3000 | 90 | 1180 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
