Link Spot Dual
LED Track Light System 48V
Light Source
Bridgelux
Color Temperature
2700K
3000K
4000K
CRI
98
90
80
Power
12W
26W
Input Voltage
DC 48V
Dimming Option
DALI
Beam angle
15°
28°
40°
60°
Tilt/Rotate
0-90°/350°
Finish(fine texture)
RAL 9005
RAL 9016
Degree of Protection
IP20
LINK is a compact lighting tool that can be equipped with direction spotlight, linear bar and pendant light.

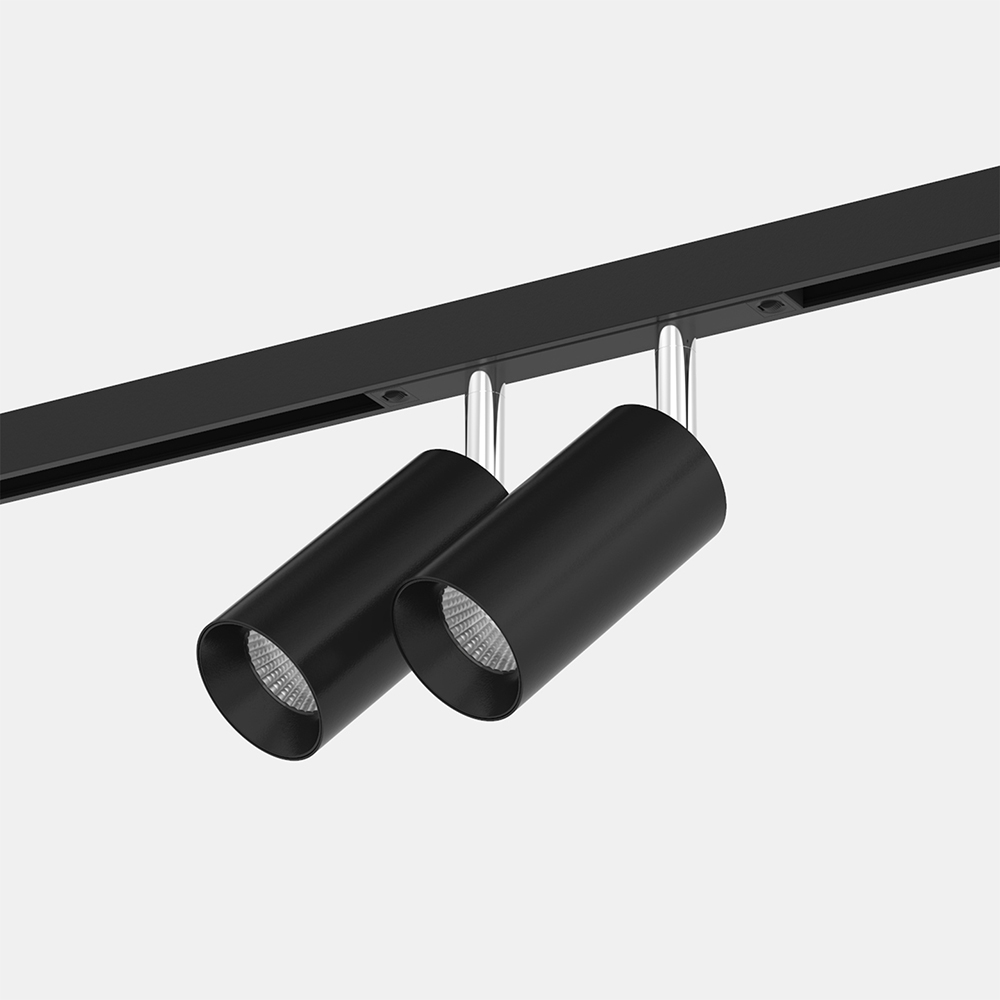

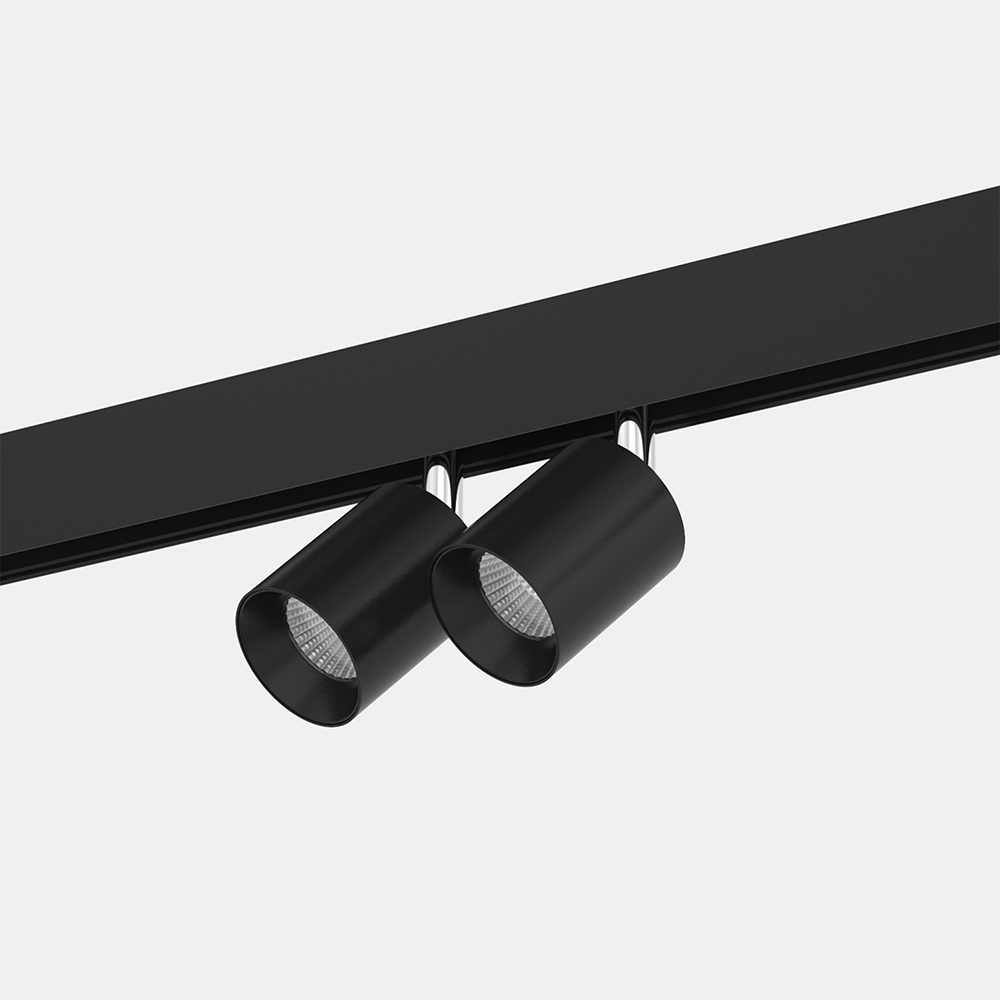

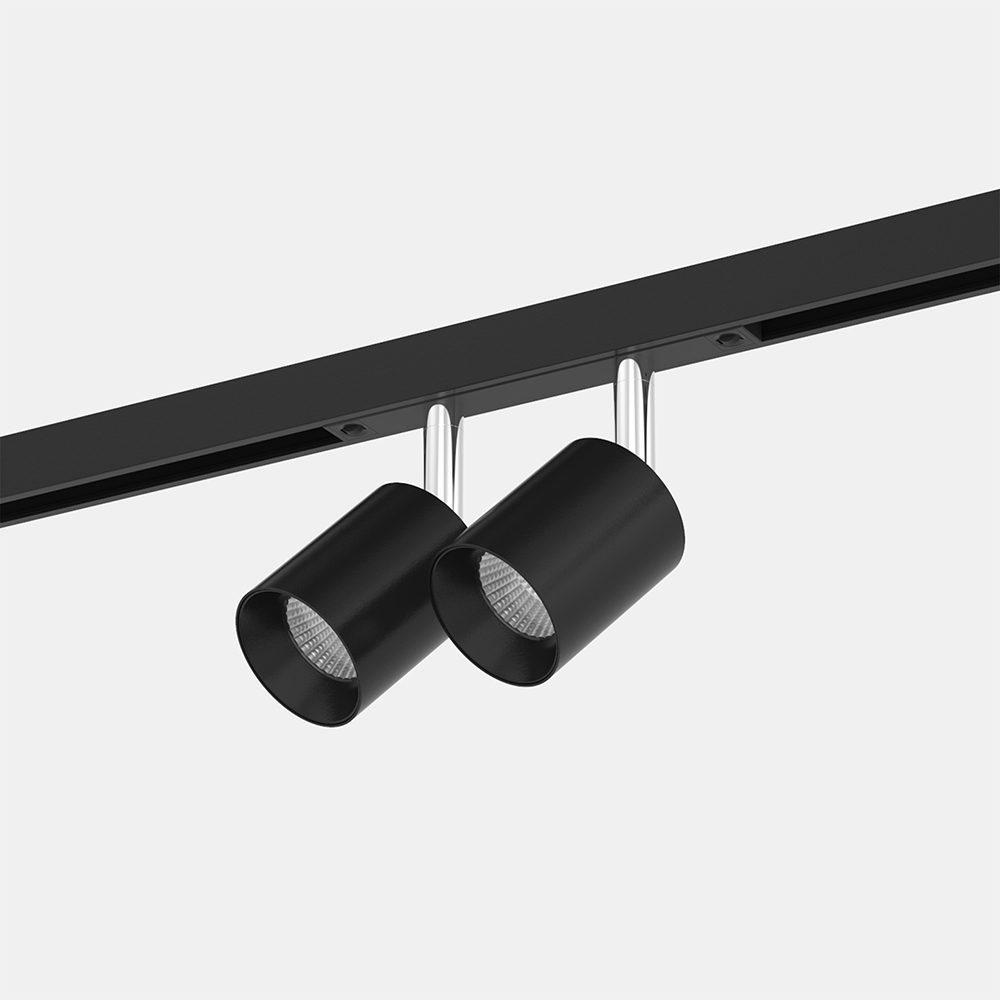

Extruded aluminum track comes in two dimensions: W26*H27mm (H27 for short) and W26*H54mm (H54 for short).
LINK is producer and user friendly thanks to its minimal design. With no more magnets in the module there is no worries that the LED driver will be magnetized in the long run.
Extruded aluminum track comes in two dimensions: W26*H27mm (H27 for short) and W26*H54mm (H54 for short).
LINK is producer and user friendly thanks to its minimal design. With no more magnets in the module there is no worries that the LED driver will be magnetized in the long run.

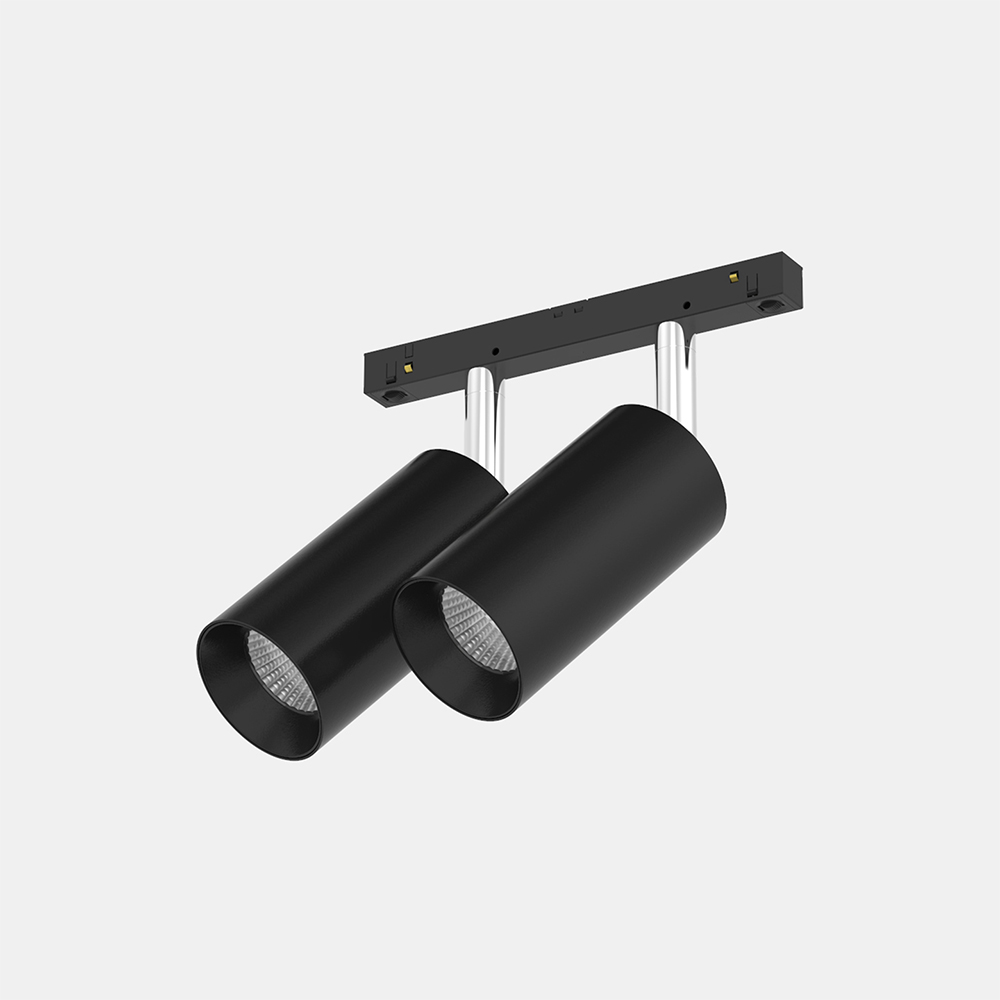

The adaptor was fixed by the copper clips and small locks at both ends.
Standard version with DALI 5 wires is of 3 years warranty. LINK modules powered by Tridonic DC-String DALI is available on request, extended warranty of 5 years.
Standard version with DALI 5 wires is of 3 years warranty. LINK modules powered by Tridonic DC-String DALI is available on request, extended warranty of 5 years.
DC-String technology reduces the traditional 5 wires required for DALI to 2. Individual module was addressed and controlled via the DC power lines.
TECHNICAL SPECIFICATIONS
| Article No. | Control | Finish | LED | P(W) | Voltage(V) | Angle(°) | CCT(K) | CRI | lm/W | Flux(lm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L-SD-48-12-40-30-90-MB-DA/ST | DALI/String | Matt black | Bridgelux | 12 | 48 | 40 | 3000 | 90 | 87 | 1040 |
| L-SD-48-12-40-40-90-MB-DA/ST | DALI/String | Matt black | Bridgelux | 12 | 48 | 40 | 4000 | 90 | 93 | 1120 |
| L-SD-48-26-40-30-90-MB-DA/ST | DALI/String | Matt black | Bridgelux | 26 | 48 | 40 | 3000 | 90 | 85 | 2200 |
| L-SD-48-26-40-40-90-MB-DA/ST | DALI/String | Matt black | Bridgelux | 26 | 48 | 40 | 4000 | 90 | 92 | 2400 |
| L-SD-48-26-40-30-98-MB-DA/ST | DALI/String | Matt black | Bridgelux | 26 | 48 | 40 | 3000 | 98 | 74 | 1920 |
| L-SD-48-26-40-40-98-MB-DA/ST | DALI/String | Matt black | Bridgelux | 26 | 48 | 40 | 4000 | 98 | 80 | 2080 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
