Lunga SunLike Eco
Flexible LED Strip
Light Source
2835 SMD
Substrate
Copper 3Oz
Solder Pad
Immersion gold
Color Temperature
3000K
4000K
5000K
6500K

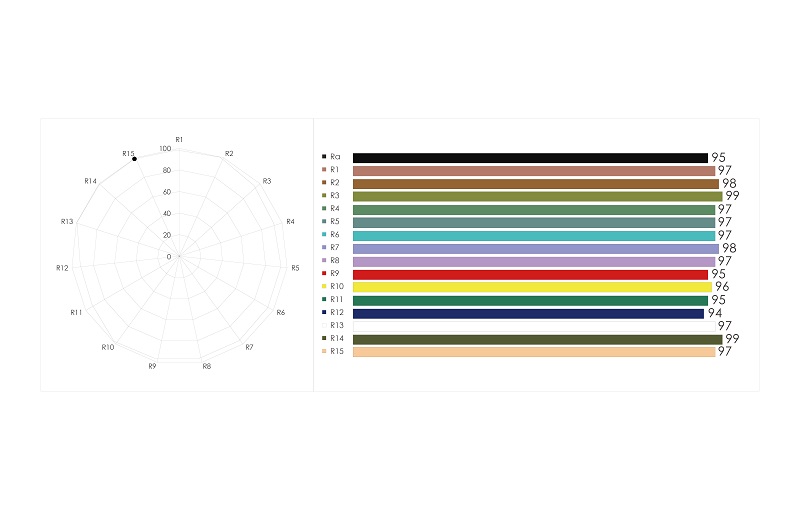

CRI
95
MacAdam Ellipse
6-Step
Input Voltage
DC 24V
Operating Temperature
-20°C~+45°C
Degree of Protection
IP00
Package
10m/reel

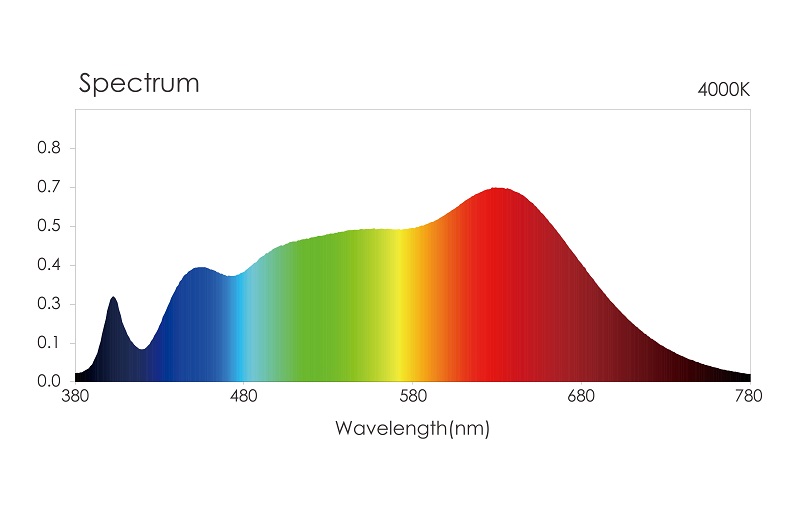

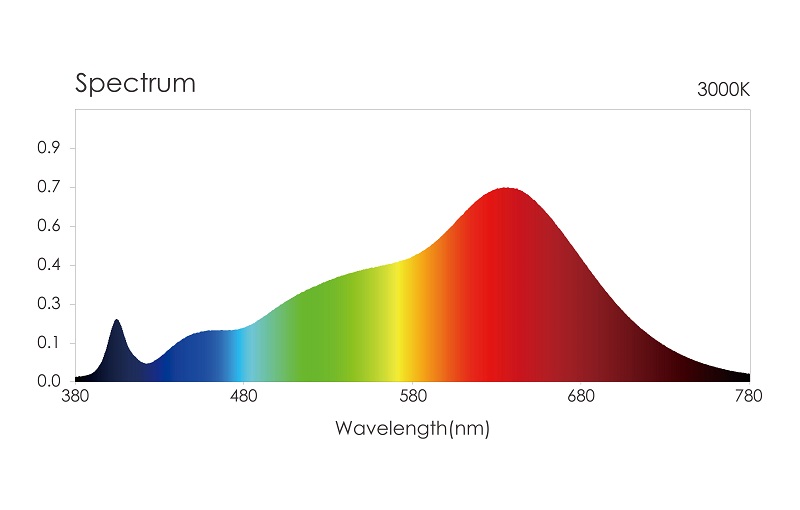

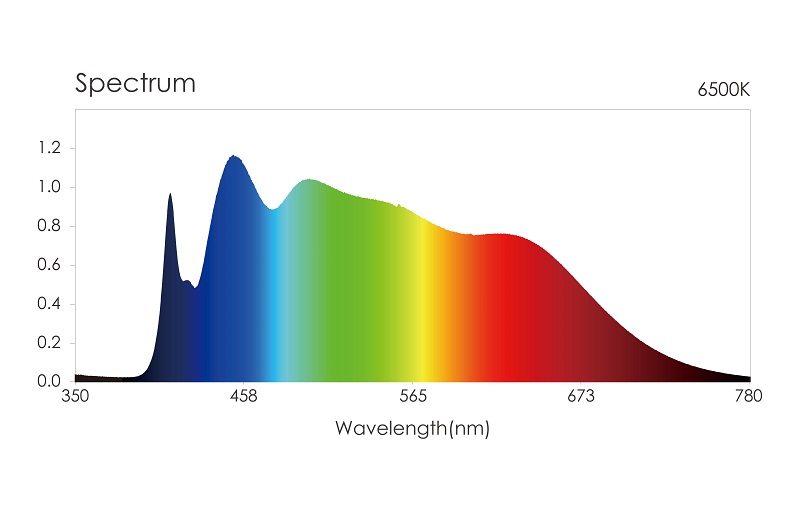

SunLike Eco flexible LED strip contains 154 pieces of Sunlight Spectrum SMD 2835 LEDs per meter. The continuous and saturated spectrum is very close to the actual sunlight. With a high color rendering index of CRI95 and blue light reduction, it creates a healthy lighting environment for human beings. A 3Oz copper substrate and a current stabilization system ensure a good heat transfer and an even light output from the beginning to the end of the LED strip.
TECHNICAL SPECIFICATIONS
| Article No. | Type | LEDs | LEDs/m | Volt(DC) | Power(W) | Angle(°) | CCT(K) | CRI | Flux(lm) | Max Length(m) |
|---|---|---|---|---|---|---|---|---|---|---|
| Sc2425309510SE | CC | 2835 | 154 | 24V | 25 | 120 | 3000 | 95 | 1715 | 5 |
| Sc2425409510SE | CC | 2835 | 154 | 24V | 25 | 120 | 4000 | 95 | 1780 | 5 |
| Sc2425659510SE | CC | 2835 | 154 | 24V | 25 | 120 | 6500 | 95 | 1960 | 5 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
