Pendant LED Ring Light

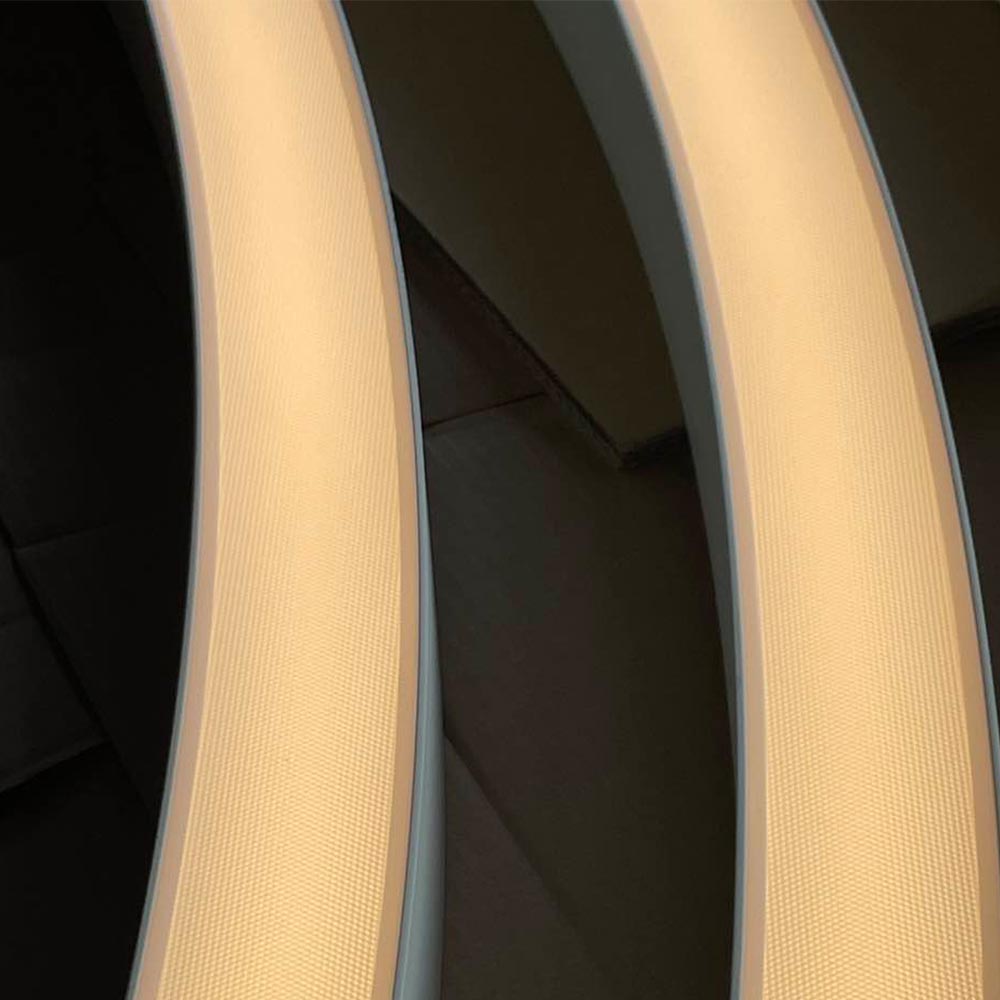

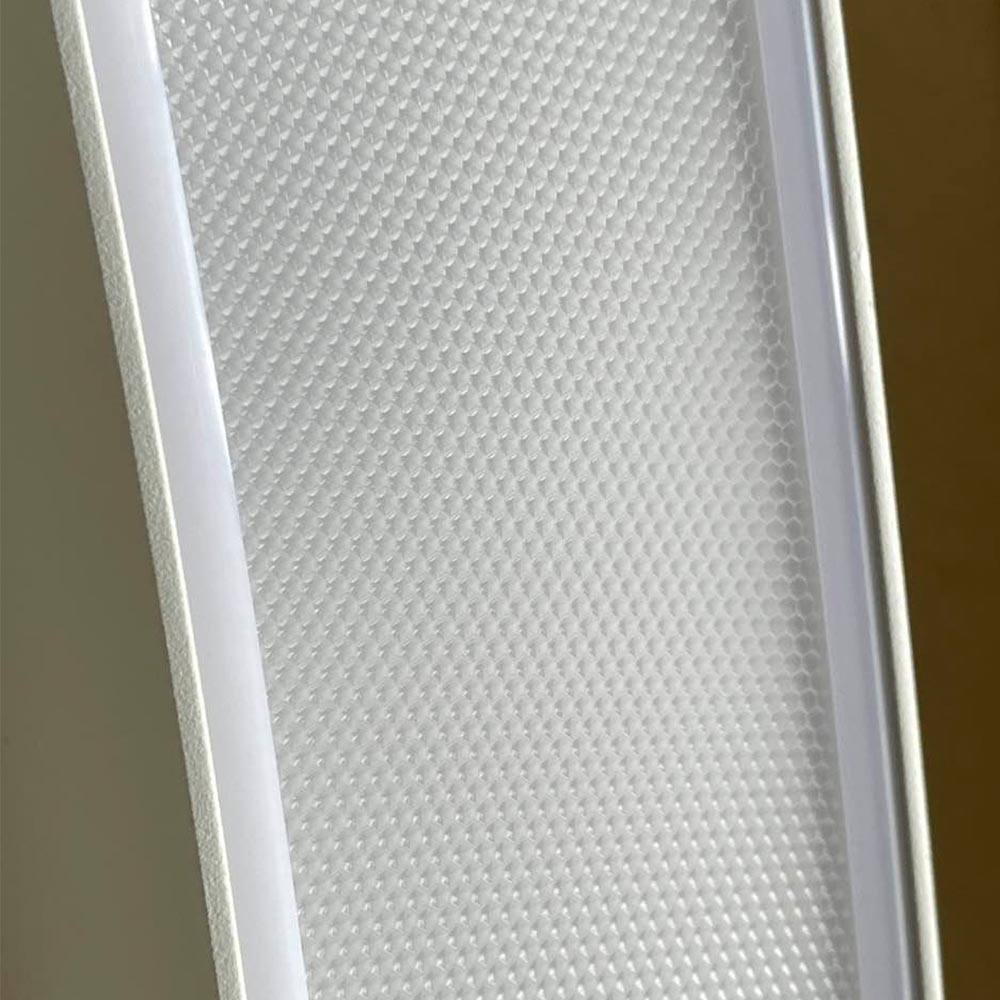

Our Pendant LED Ring Light, a circular lighting fixture, is tailored for contemporary commercial spaces. Encased in durable extruded aluminum, it comes in matt white, matt black, and other custom powder coatings, fitting various architectural designs. The light offers two diffuser options: opal and microprismatic.
Operating on AC 220-240V with an integrated DALI power supply, this circular light is energy-efficient and offers seamless control. It's available in a range of color temperature options, from a warm 2700K to a bright 5700K, allowing for the creation of different atmospheres.
Designed for suspended installation, the light provides flexible lighting, with options for direct downlight or a mix of direct downlight and indirect uplight. Customization options are extensive, including widths from 40-200mm and diameters ranging from 400mm up to a striking 6000mm, along with the ability to create bespoke lines, shapes, and patterns. This Pendant LED Ring Light is an ideal blend of functionality and style for upscale commercial settings.
TECHNICAL SPECIFICATIONS
| Article No. | AC Input(V) | DALI Addresses | Type | P(W) | Angle(°) | CCT(K) | CRI | Flux(lm) | Efficacy(lm/W) | Dims(mm) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL1000DD0653090 | 220-240 | 1 | Direct | 65 | 90 | 3000 | 90 | 7150 | 110 | Ø1000*H75*W60 | 1 |
| RL1500DD0993090 | 220-240 | 2 | Direct | 99 | 90 | 3000 | 90 | 10890 | 110 | Ø1500*H75*W60 | 1 |
| RL1800DD1203090 | 220-240 | 2 | Direct | 120 | 90 | 3000 | 90 | 13200 | 110 | Ø1800*H75*W60 | 2 |
| RL3000DD2003090 | 220-240 | 4 | Direct | 200 | 90 | 3000 | 90 | 22000 | 110 | Ø3000*H75*W60 | 4 |
| RL1000DI0650213090 | 220-240 | 1 | Direct / Indirect | 65 / 21 | 90 | 3000 | 90 | 7150 / 1680 | 110 / 80 | Ø1000*H75*W60 | 1 |
| RL1500DI0990323090 | 220-240 | 2 | Direct / Indirect | 99 / 32 | 90 | 3000 | 90 | 10890 / 2560 | 110 / 80 | Ø1500*H75*W60 | 1 |
| RL1800DI1200403090 | 220-240 | 3 | Direct / Indirect | 120 / 40 | 90 | 3000 | 90 | 13200 / 3200 | 110 / 80 | Ø1800*H75*W60 | 2 |
| RL3000DI2000653090 | 220-240 | 5 | Direct / Indirect | 200 / 65 | 90 | 3000 | 90 | 22000 / 5200 | 110 / 80 | Ø3000*H75*W60 | 4 |
DISCONTINUED
