Source Click Fixed
LED Downlight
Light Source
Bridgelux
Material
Aluminum + PC
Color Temperature
2700K
3000K
4000K
CRI
97
90
80
MacAdam Ellipse
2-Step
3-Step
Degree of Protection
IP40
TECHNICAL SPECIFICATIONS
| Article No. | Diameter(mm) | Cut-out(mm) | Finish | Installed LED Module | Angle(°) | Flux(lm) |
|---|---|---|---|---|---|---|

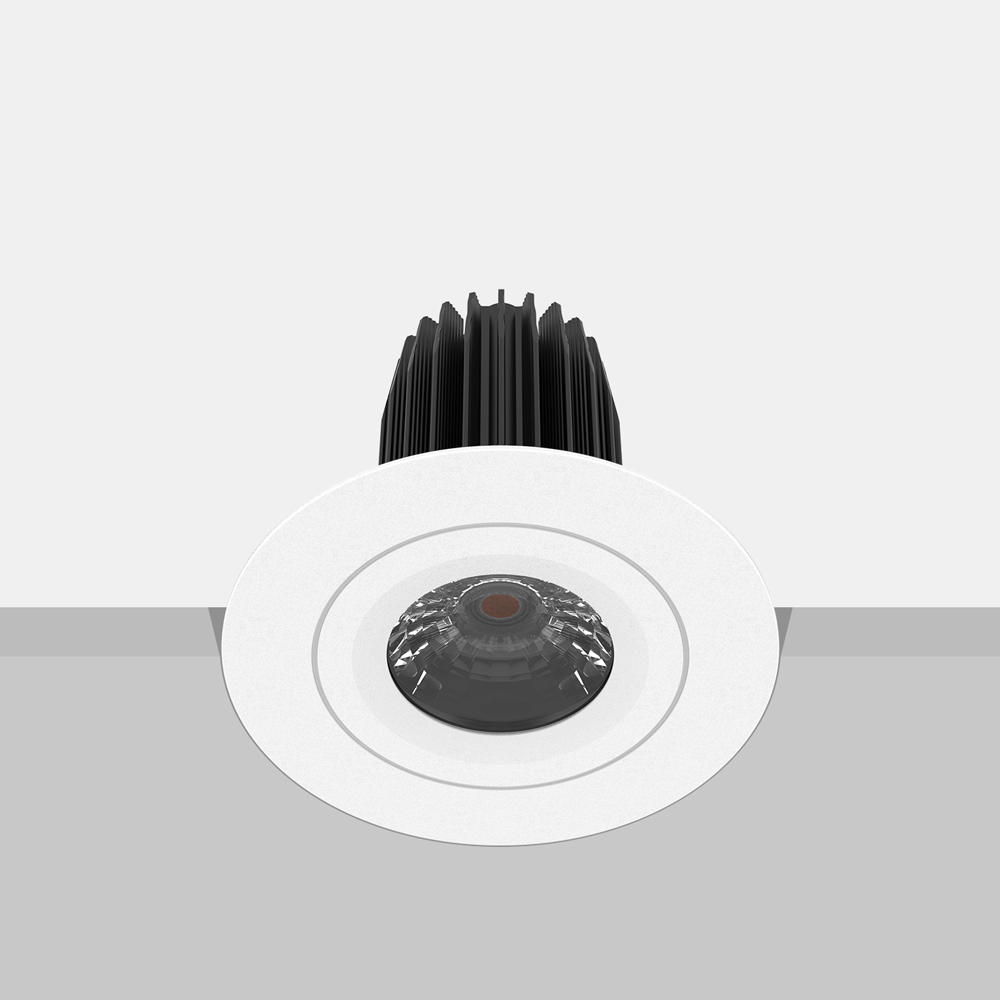

| SC-95-FX-MW | Ø95 | Ø65 | Matt White | M-9-36L-30-90 | 36 | 910 |
| SC-95-FX-MB | Ø95 | Ø65 | Matt Black | M-9-36L-30-90 | 36 | 910 |
| SC-95-FX-CH | Ø95 | Ø65 | Chrome | M-9-36L-30-90 | 36 | 910 |
| SC-95-FX-AB | Ø95 | Ø65 | Aluminum Brushed | M-9-36L-30-90 | 36 | 910 |
| SC-95-FX-NB | Ø95 | Ø65 | Nickel Brushed | M-9-36L-30-90 | 36 | 910 |

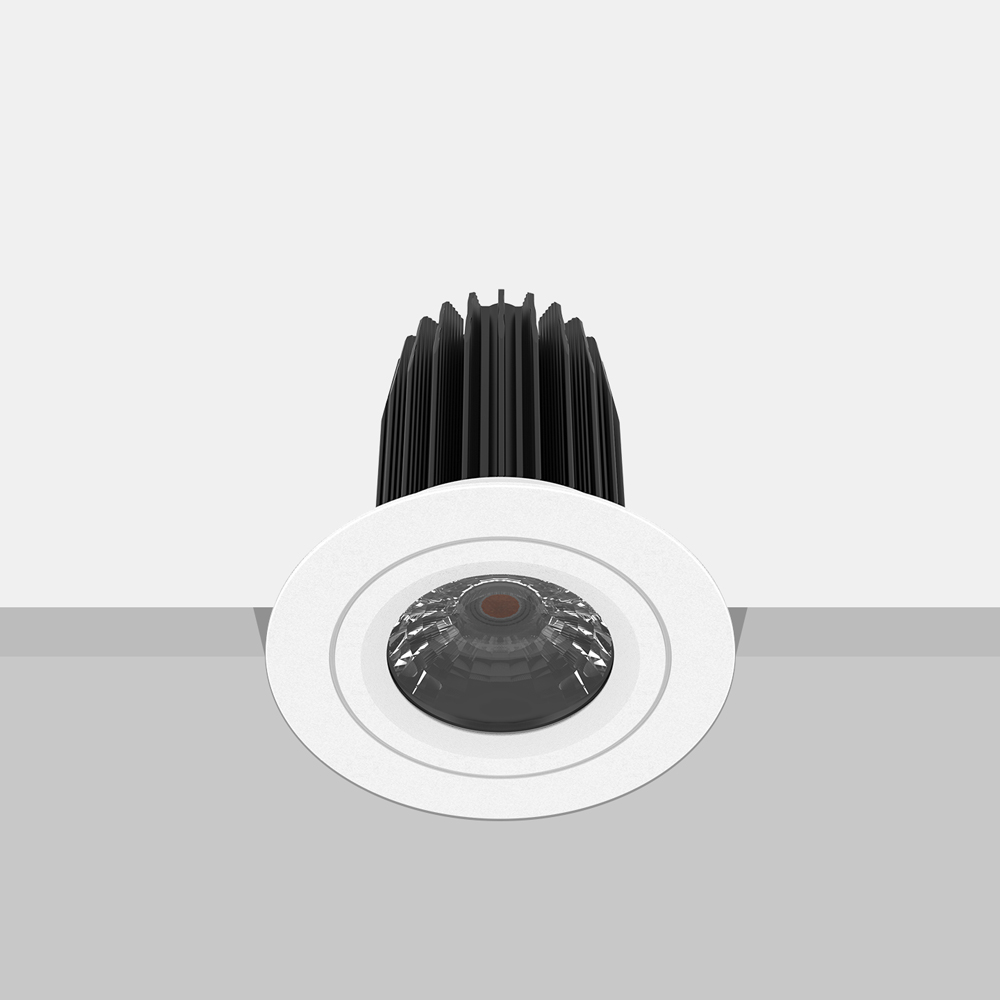

| SC-80-FX-MW | Ø80 | Ø65 | Matt White | M-9-36L-30-90 | 36 | 910 |
| SC-80-FX-MB | Ø80 | Ø65 | Matt Black | M-9-36L-30-90 | 36 | 910 |
| SC-80-FX-CH | Ø80 | Ø65 | Chrome | M-9-36L-30-90 | 36 | 910 |
| SC-80-FX-AB | Ø80 | Ø65 | Aluminum Brushed | M-9-36L-30-90 | 36 | 910 |
| SC-80-FX-NB | Ø80 | Ø65 | Nickel Brushed | M-9-36L-30-90 | 36 | 910 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
