Source Click Trimless
MR16 LED Downlight Fitting
Light Source
Bridgelux
Material
Aluminum + PC Reflector
Color Temperature
2700K
3000K
4000K
CRI
97
90
80
Tilt Angle
25°
MacAdam Ellipse
2-Step
3-Step
Degree of Protection
IP40
TECHNICAL SPECIFICATIONS
| Article No. | Diameter(mm) | Cut-out(mm) | Tiltable(°) | Finish | Installed LED Module | Angle(°) | Flux(lm) |
|---|---|---|---|---|---|---|---|

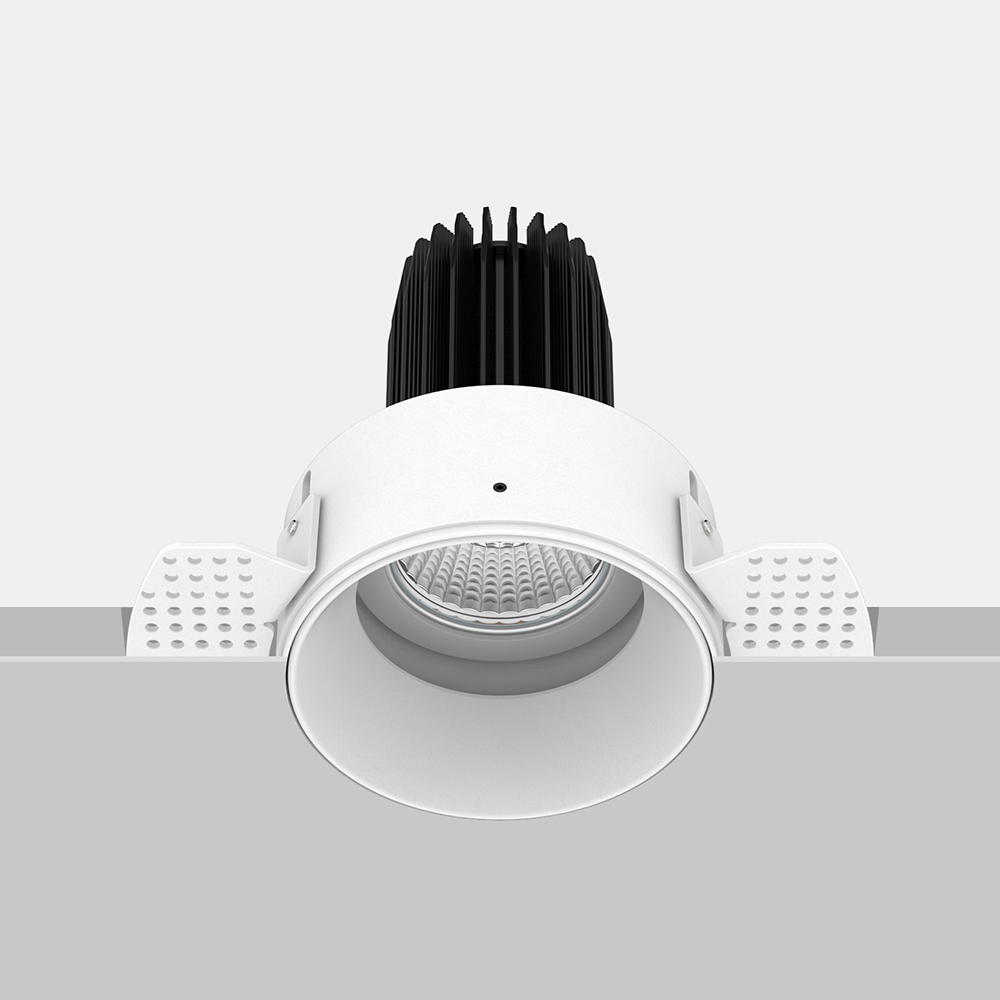

| SC-TL-MW | Ø84 | Ø90 | 25 | Matt White | M-6-15-30-90 | 15 | 530 |
| M-6-28-30-90 | 28 | 510 | |||||
| M-6-40-30-90 | 40 | 520 | |||||
| M-6-60-30-90 | 60 | 510 | |||||
| M-9-15-30-90 | 15 | 830 | |||||
| M-9-28-30-90 | 28 | 810 | |||||
| M-9-40-30-90 | 40 | 820 | |||||
| M-9-60-30-90 | 60 | 810 | |||||

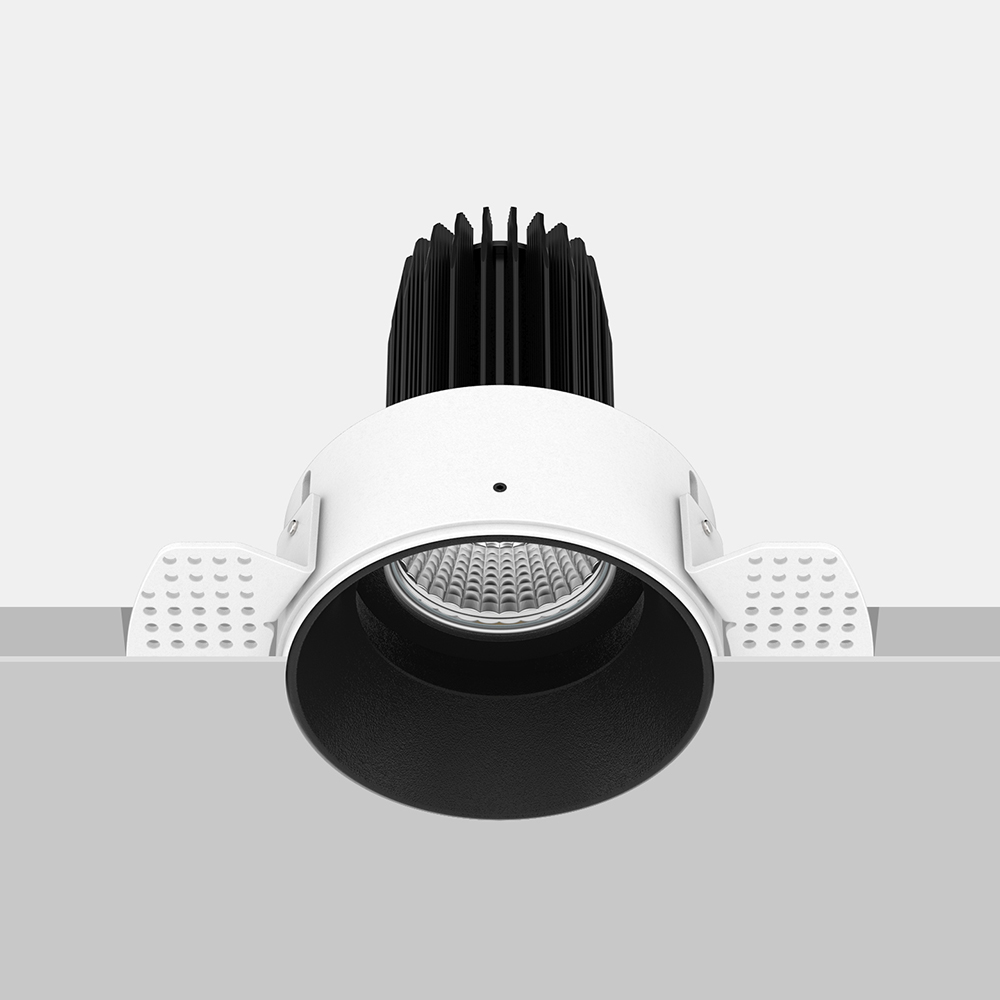

| SC-TL-DB | Ø84 | Ø90 | 25 | Deco Black | M-6-15-30-90 | 15 | 480 |
| M-6-28-30-90 | 28 | 460 | |||||
| M-6-40-30-90 | 40 | 470 | |||||
| M-6-60-30-90 | 60 | 460 | |||||
| M-9-15-30-90 | 15 | 750 | |||||
| M-9-28-30-90 | 28 | 740 | |||||
| M-9-40-30-90 | 40 | 740 | |||||
| M-9-60-30-90 | 60 | 730 | |||||

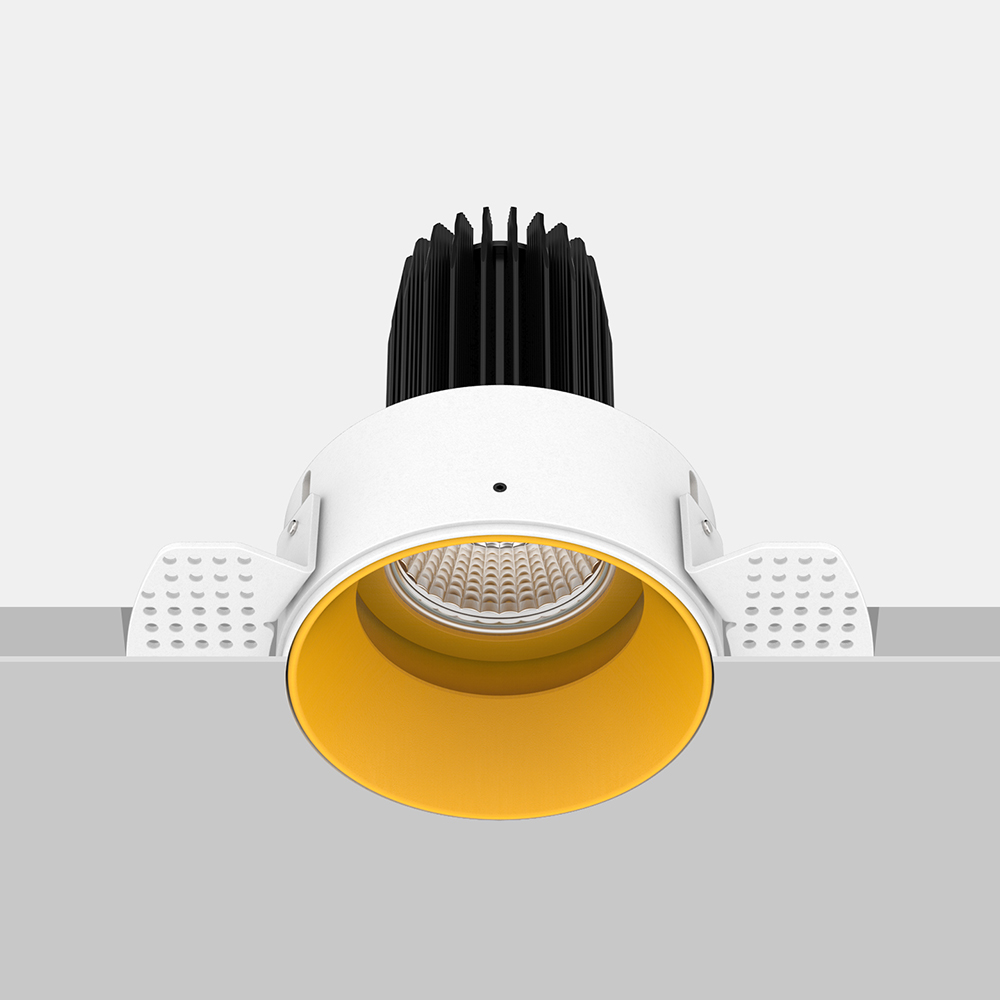

| SC-TL-DG | Ø84 | Ø90 | 25 | Deco Gold | M-6-15-30-90 | 15 | 480 |
| M-6-28-30-90 | 28 | 460 | |||||
| M-6-40-30-90 | 40 | 470 | |||||
| M-6-60-30-90 | 60 | 460 | |||||
| M-9-15-30-90 | 15 | 750 | |||||
| M-9-28-30-90 | 28 | 740 | |||||
| M-9-40-30-90 | 40 | 740 | |||||
| M-9-60-30-90 | 60 | 730 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
