Source Lens
MR16 LED Module
Light Source
Bridgelux
Material
Extruded AL + PC Lens
Color Temperature
2700K
3000K
4000K
CRI
97
90
80
Beam Angle(6.1W)
18°
22°
36°
60°
Beam Angle(8.9W)
20°
24°
36°
60°
MacAdam Ellipse
2-Step
1-Step on request
Degree of Protection
IP40
TECHNICAL SPECIFICATIONS
| Article No. | LED | P(W) | CC(mA) | Voltage(V) | Angle(°) | CCT(K) | CRI | Flux(lm) |
|---|---|---|---|---|---|---|---|---|

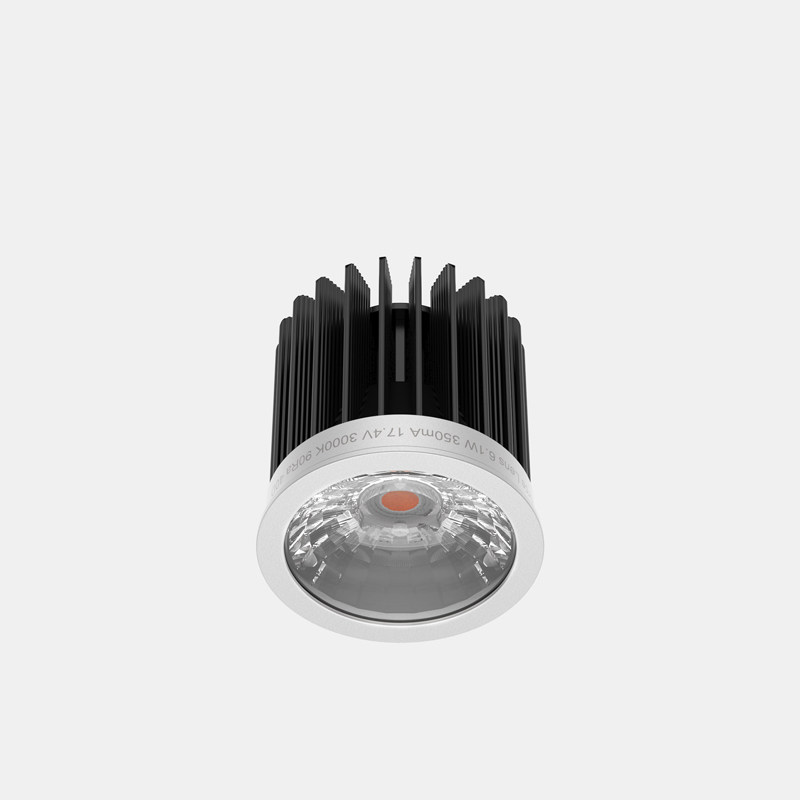

| M-6-18L-30-90 | V8 | 6.1 | 350 | 17.4 | 18 | 3000 | 90 | 630 |
| M-6-22L-30-90 | V8 | 6.1 | 350 | 17.4 | 22 | 3000 | 90 | 630 |
| M-6-36L-30-90 | V8 | 6.1 | 350 | 17.4 | 36 | 3000 | 90 | 620 |
| M-6-60L-30-90 | V8 | 6.1 | 350 | 17.4 | 60 | 3000 | 90 | 610 |

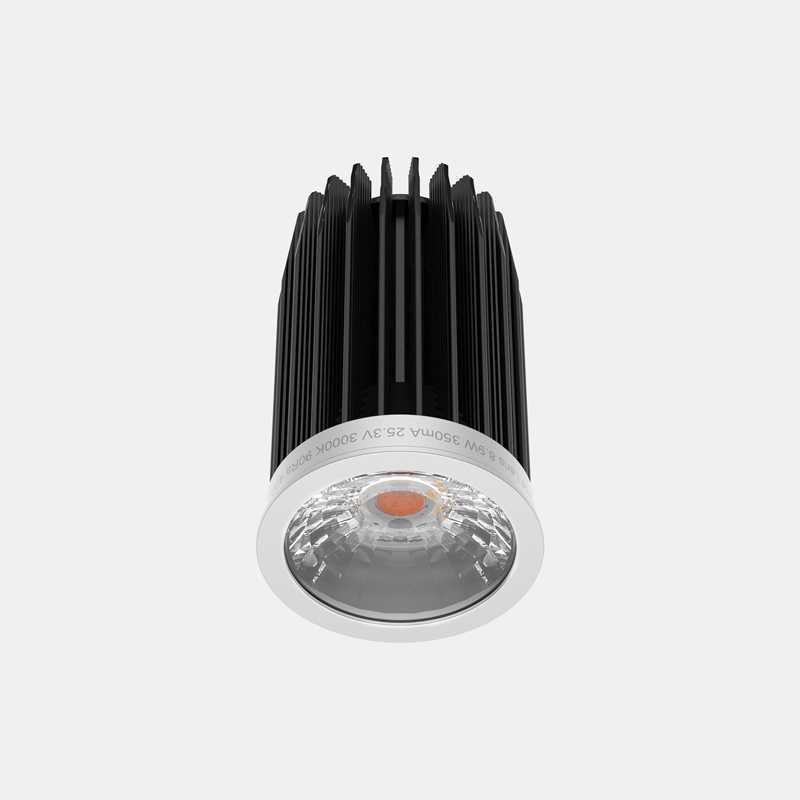

| M-9-20L-30-90 | Vero 10 | 8.9 | 350 | 25.3 | 20 | 3000 | 90 | 930 |
| M-9-24L-30-90 | Vero 10 | 8.9 | 350 | 25.3 | 24 | 3000 | 90 | 930 |
| M-9-36L-30-90 | Vero 10 | 8.9 | 350 | 25.3 | 36 | 3000 | 90 | 910 |
| M-9-60L-30-90 | Vero 10 | 8.9 | 350 | 25.3 | 60 | 3000 | 90 | 900 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
