Source RGB
MR16 LED Module
Light Source
Tyanshine
Material
Extruded AL + PC Reflector

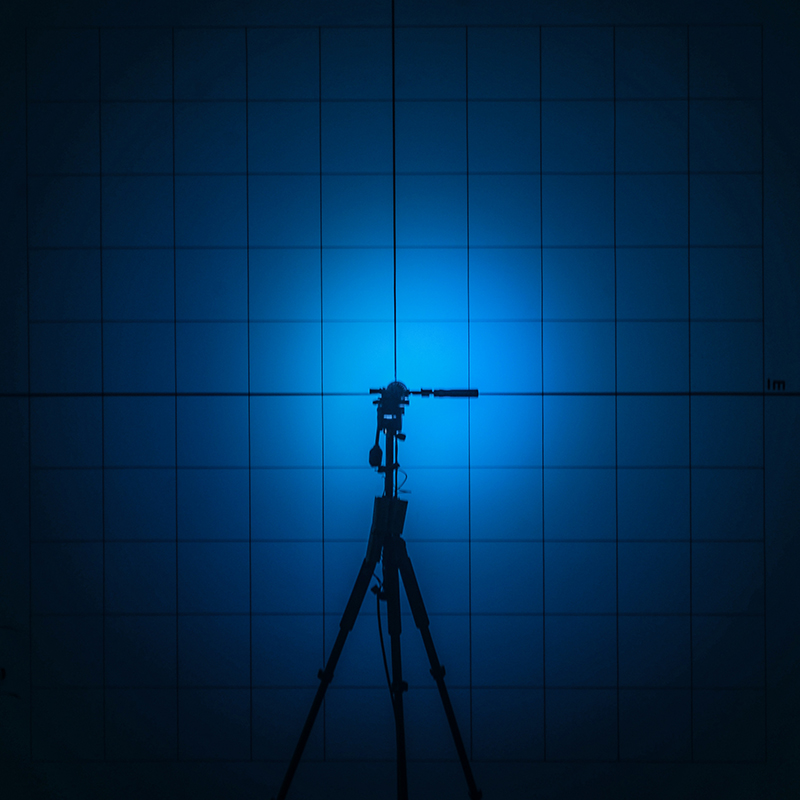

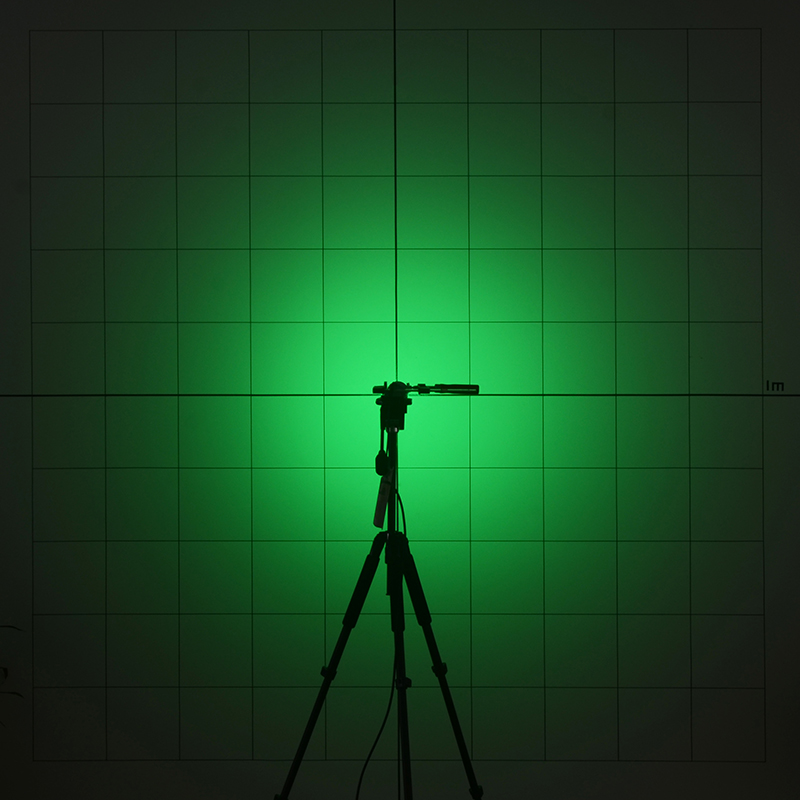

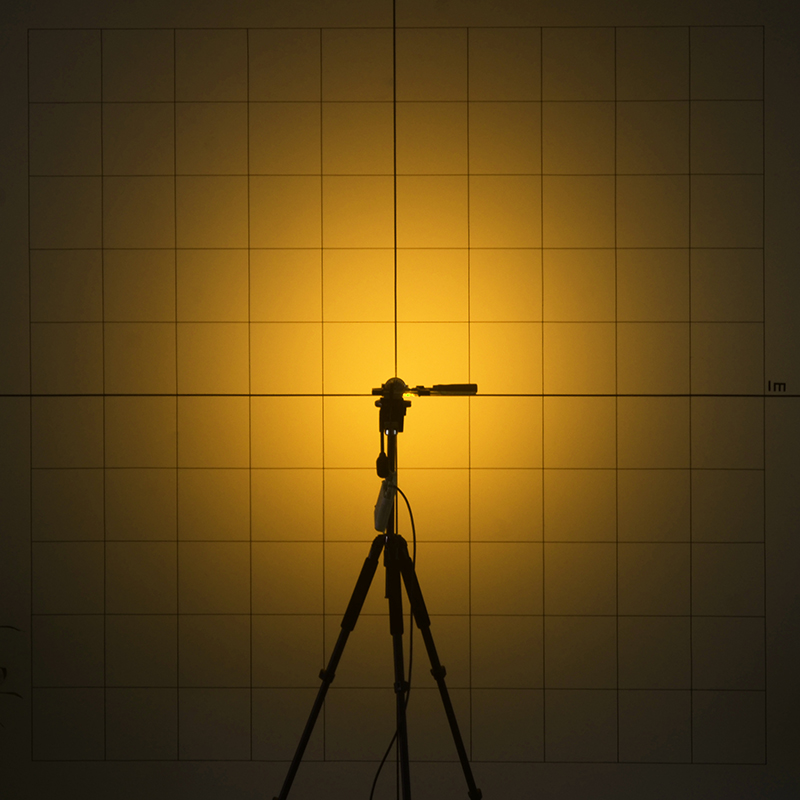

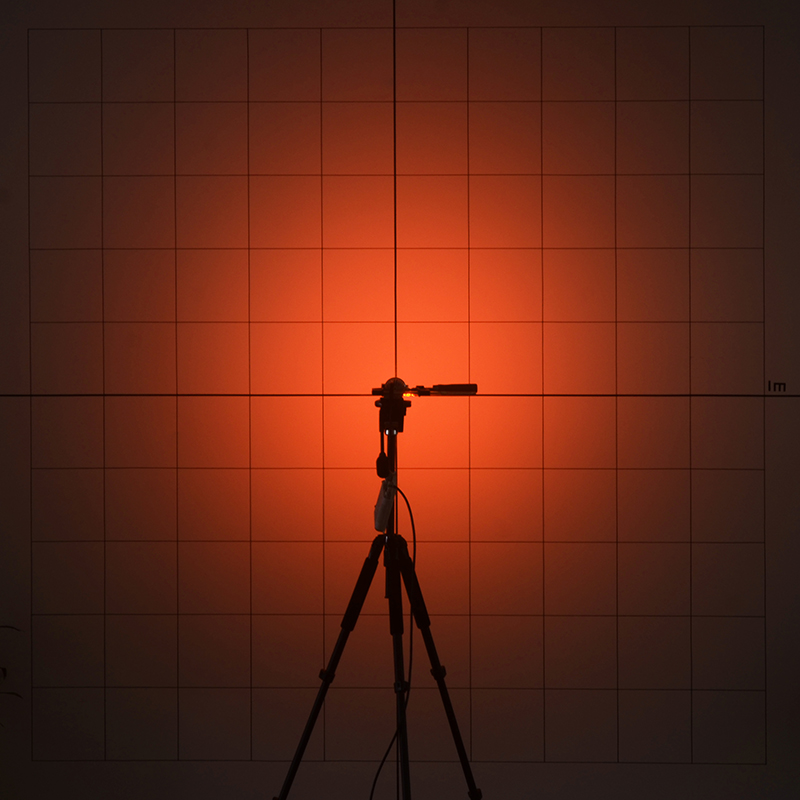

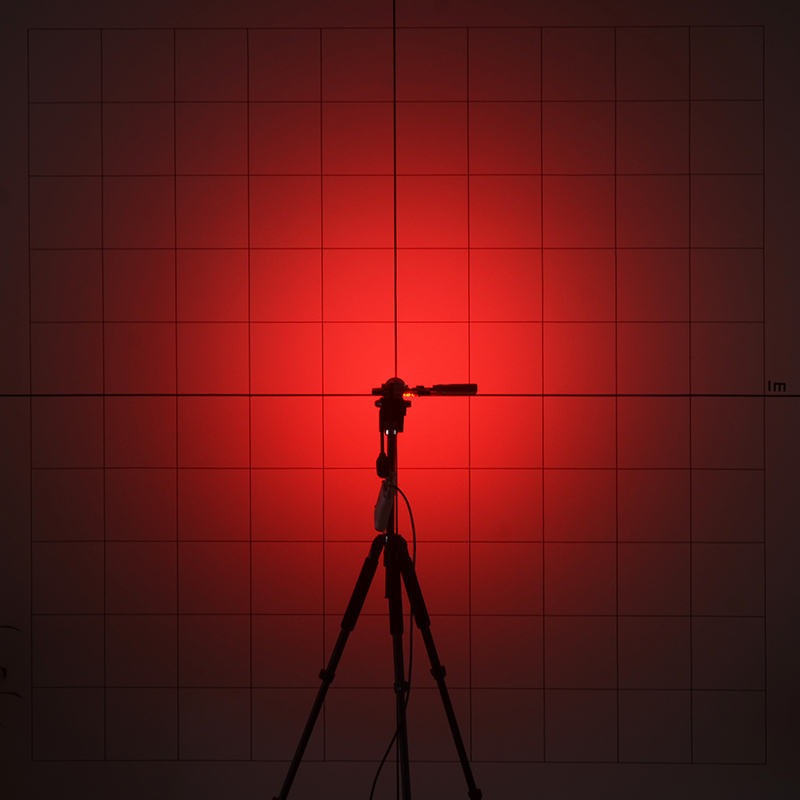

Beam Angle(3W 6W)
30°
36°
45°
60°
Beam Angle(10W)
35°
45°
60°
Color
RGB
Wavelength(nm)
R 620-630
G 520-530
B 460-470
Degree of Protection
IP40
TECHNICAL SPECIFICATIONS
| Article No. | LED | Color | P(W) | CC(mA) | Voltage(V) | Angle(°) | Flux(lm) |
|---|---|---|---|---|---|---|---|
| M-3-45-RGB | Tyanshine | R | 2.5 | 160 | 15.6 | 45 | 126 |
| M-3-45-RGB | Tyanshine | G | 2.6 | 160 | 16.4 | 45 | 175 |
| M-3-45-RGB | Tyanshine | B | 2.8 | 160 | 17.2 | 45 | 36 |
| M-6-45-RGB | Tyanshine | R | 5.3 | 350 | 15.7 | 45 | 202 |
| M-6-45-RGB | Tyanshine | G | 5.9 | 350 | 16.9 | 45 | 378 |
| M-6-45-RGB | Tyanshine | B | 6.4 | 350 | 18.3 | 45 | 62 |
| M-10-45-RGB | Tyanshine | R | 7.8 | 500 | 15.5 | 45 | 305 |
| M-10-45-RGB | Tyanshine | G | 9.9 | 500 | 18.7 | 45 | 484 |
| M-10-45-RGB | Tyanshine | B | 9.3 | 500 | 19.7 | 45 | 115 |
TECHNICAL DRAWINGS
If the specifications do not meet your expectation, you could leave a message for custom services. We provide lighting solutions and pricing within a few days. It is free of charge before entering the prototyping process.
